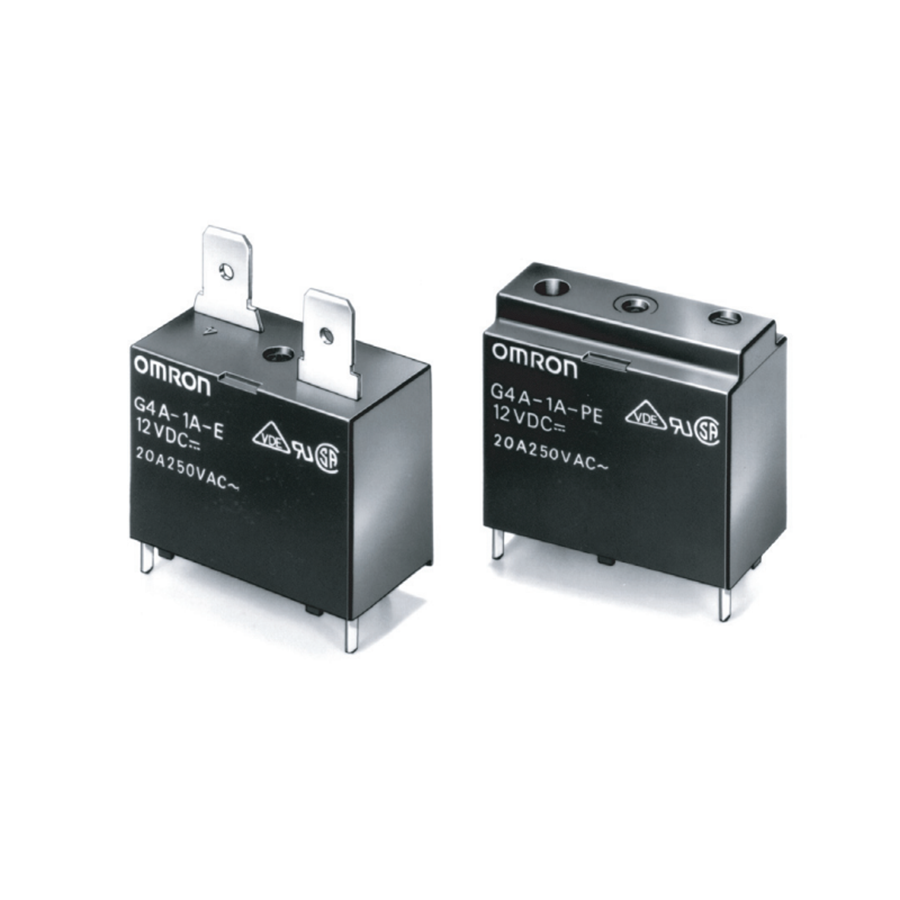

G4A-1A-PE DC24
Manufacturer:
Omron
Mfr.Part #:
G4A-1A-PE DC24
Datasheet:
Description:
Power Relays Through Hole 37.5 mA 640 Ω 24 V General Purpose
| Parameter | Value |
|---|---|
| Length | 30.5 mm |
| Width | 16 mm |
| Termination | PC Pin, Through Hole |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Power Rating | 900 mW |
| Height | 26.8 mm |
| Packaging | Tray |
| Depth | 16 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver, Tin |
| Current Rating | 20 A |
| Max Current Rating | 20 A |
| Approvals | CSA, UL, VDE |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 60 °C |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 37.5 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 640 Ω |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Contact Current Rating | 20 A |
| switching current | 20 A |
| power consumption | 900 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 V |
| Coil Power | 900 mW |
| Must Operate Voltage | 16.8 V |
| Must Release Voltage | 2.4 V |
